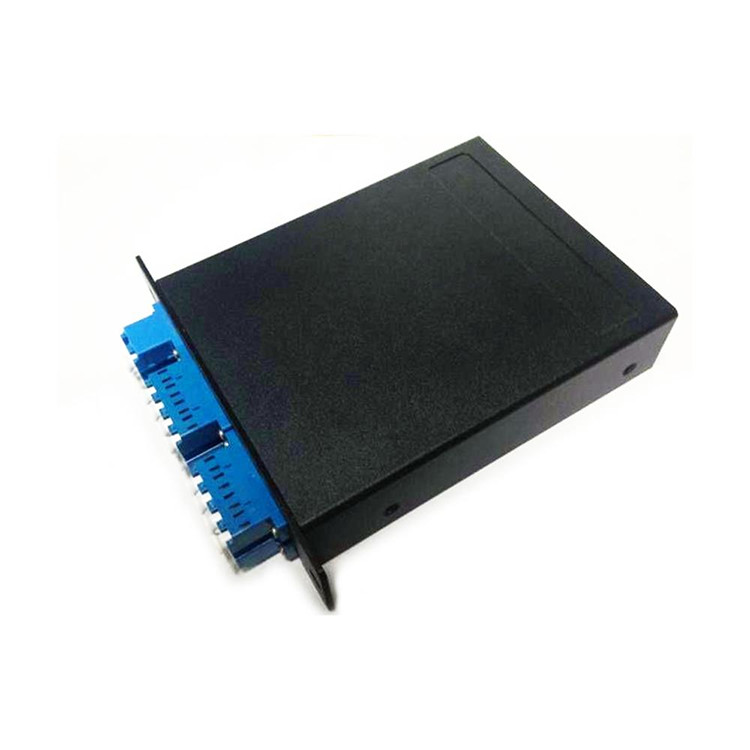

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

Product Categories
Shenzhen CY COM Product Co., Ltd.
Contact Now

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

Brand Name : CY COM

Model Number : CWDM DWDM

Certification : ISO RoSH SGS

Place of Origin : Shenzhen China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 8-9 working days

Packaging Details : Individual gift carton box

Model No. : 1*6 CWDM

Wavelength : 1270~1610nm

Material : LGX Box

Type : Mux or Demux

Polarization dependent loss : ent loss: ≤0.2dB

Connector : Simplex LC

Warranty : 1 Year

Channel Uniformity : : ≤0.6dB

Contact Now

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

1X6 CWDM multiplexer mux demux CWDM module fiber optic telecom equipment

Description

1. Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.

2. It provides low insertion loss, high channel isolation, wide passband, low temperature sensitivity and epoxy free optical path

Features

1. CWDM optical module adopts CWDM technology, which can combine optical signals of different
wavelengths through an external WDM, because it transmits through a single optical fiber, thus saving optical fiber resources.
2. At the same time, the receiver needs to use WDM to decompose the complex optical signal.
3. In addition, CWDM optical modules can be plugged into switch or router SFP ports.

Applications

CWDM optical modules are widely used in campus, data center, FTTH,1G and 2G fiber channels, gigabit Ethernet in MAN, security and
protection system and other fields.

Specification:

Parameter
4 Channel
8 Channel
16 Channel
18 Channel
Mux
Demux
Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength(nm)
1270~1610/1271~1611
Center wavelength Accuracy (nm)
±0.5
Channel Spacing(nm)
20
Channel Passband (@-0.5dB bandwidth (nm)
+/-7.5/+/-6.5
Insertion Loss (dB)
≤1.5
≤2.5
≤3.5
≤3.5
Channel Uniformity (dB)
≤0.6
≤1.0
≤1.5
≤1.5
Channel Ripple (dB)
0.3
Isolation(dB)
Adjacent
>30
Non-adjacent
>40
Insertion Loss(dB)
Express with filter
>30
Express without filter
>12
Inertion Loss Temperature Sensitivity (dB/℃)
<0.005
Wavelength Temperature Shifting (nm/℃)
<0.002
Polarization Dependent Loss(dB)
<0.1
Polarization Mode Dispersion(ps)
<0.1
Directivity (dB)
＞50
Return Loss(dB)
＞45
Maximum Power Handling (mW)
300
Opterating Temperature (℃)
-40~+85
Storage Temperature (℃)
-40~+85
Package dimension (mm)(LGX box)
L155.5xW102(129)xH29


Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM ModuleSimplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module
